ZONE3: WORLD CLASS SOFTWARE FOR
INDUSTRY-LEADING METROLOGY
Watch this video to learn more about how ZONE3 was designed from the ground up to be the world’s most comprehensive metrology software.
Watch the Video
INTUITIVE INTERFACE FOR
FASTER, EASIER ACCURACY

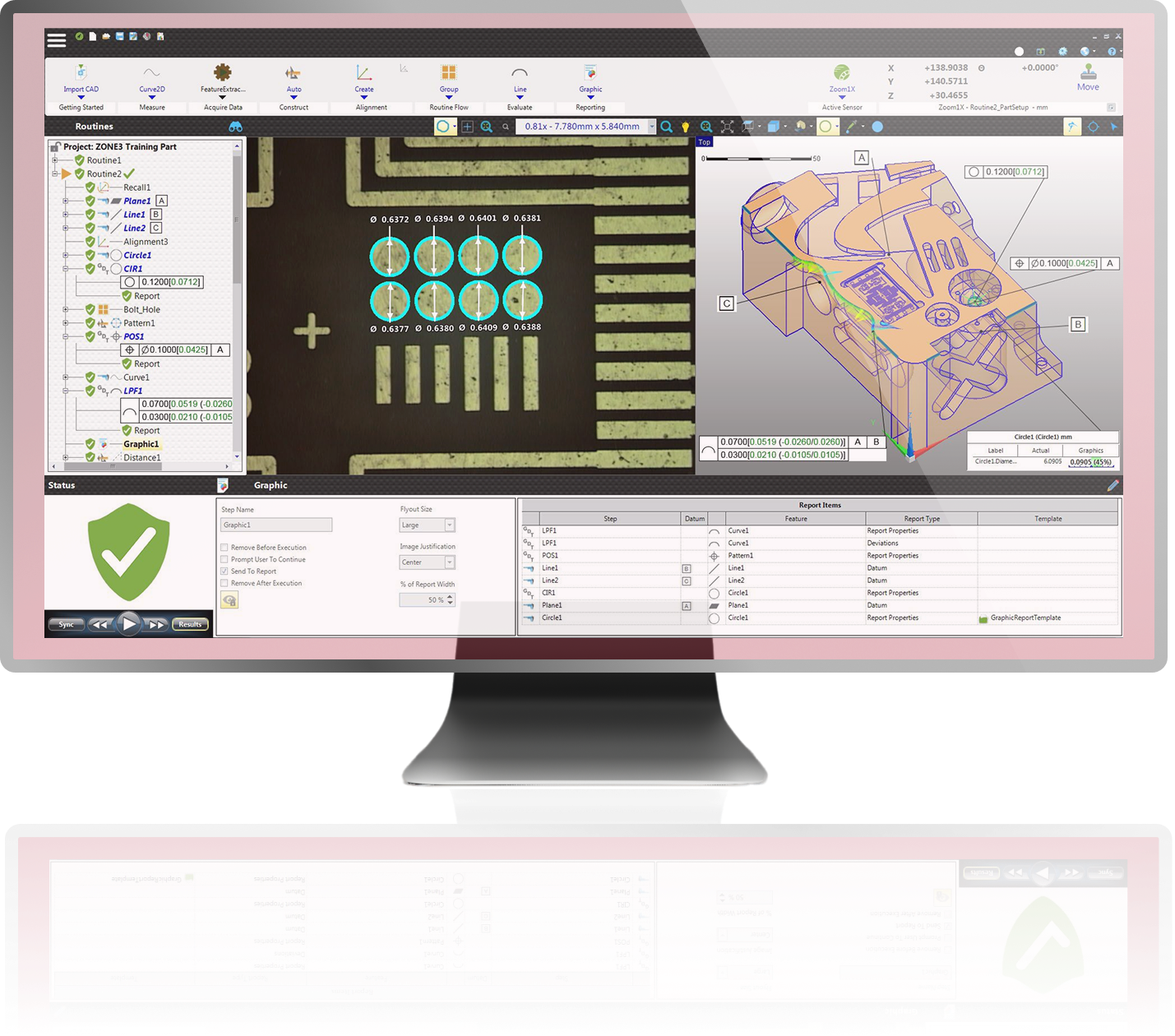

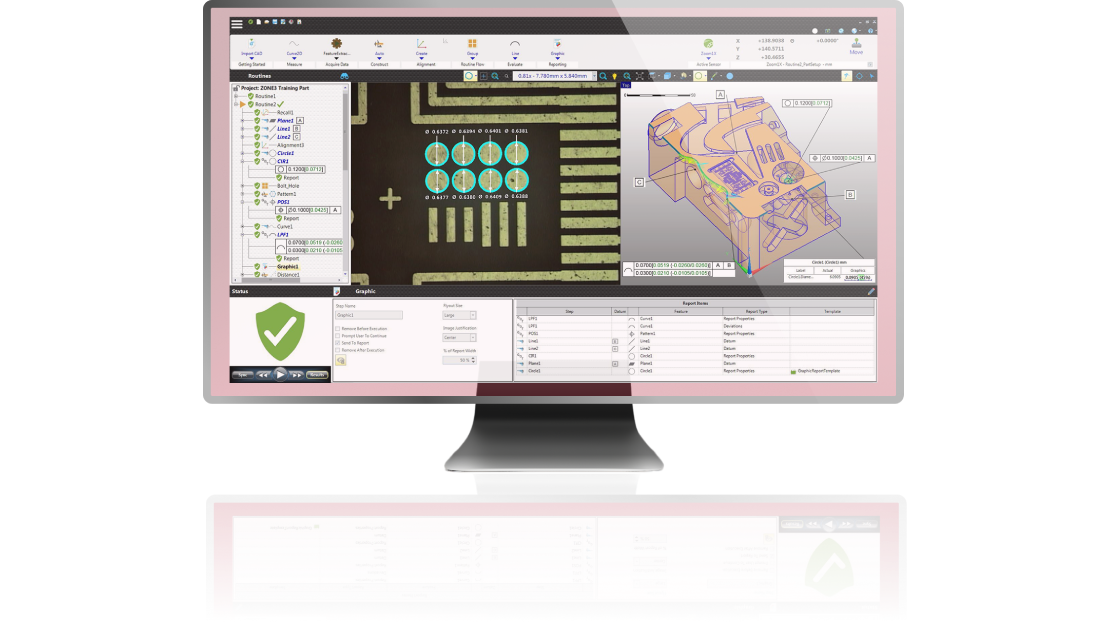

OGP ZONE3 Metrology Software is the powerhouse core of SmartScope M-Series systems. ZONE3 is the world’s most comprehensive metrology software, purpose-built for multisensor metrology. Fully CAD-based, all sensors are programmed the same way, saving time both in routine building and in training. M-Series systems take full advantage of powerful ZONE3 features like Parallel Processing and Routine Optimization to achieve fast, reliable measurements.
SIMPLE. FAST. POWERFUL.
Get OGP’s 30 years of multisensor experience on your side. ZONE3 gives you useful features, tools and built-in capabilities to meet your custom operational and regulatory requirements today — and tomorrow.
Easy Programming
Reduce training and programming times with the simple, intuitive software that controls the entire M-Series Metrology suite. See alignments, measurements and constructions graphically in real time.
Fast Throughput
Measure fast and manufacture faster — ZONE3 acquires difficult measurements with just a few clicks, so getting accurate readings won’t slow down production. Measure entire scenes instantly with full field image processing and high-speed cameras.
Powerful Capabilities
Support your operational and regulatory requirements. ZONE3 has the features, tools and built-in capabilities you need, from instant orientation detection to automatic lighting adjustments to audit trails and offline programming.
METROLOGY FEATURES FOR
MODERN MANUFACTURING
ZONE3 features reduce frustration by automating complex processes for easier programming and greater accuracy.
Feature Extractor
Automatically identifies and measures features within the field of view
Auto Adjust Lights
Automatically sets the ideal lighting intensity for the scene
AutoID
Automatically identifies parts placed on the stage — even without fixturing
FeatureFinder
Collects difficult edge measurements with ease
Visual Validation
Measure entire scenes instantly with full field image processing and high-speed cameras.
Automatic Path Generation
Uses the CAD model to create the optimally efficient path for each measurement no matter which sensor
ZONE3 SUPPORTS
A
WIDE
SCOPE
OF PRODUCTS
Our full line of metrology systems ensures the right solution for your measurement needs.

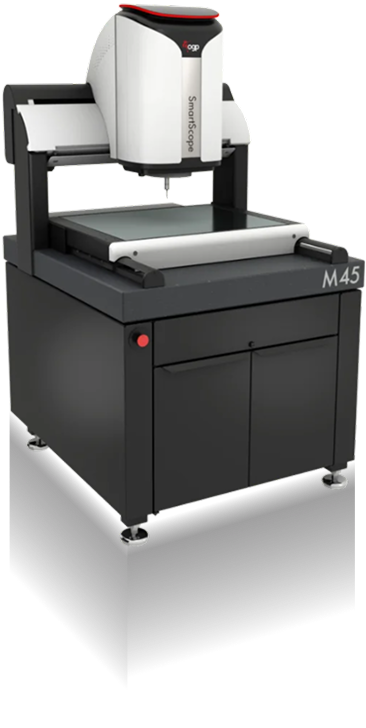

From walk-up measurements on the shop floor to intricate industry 4.0 environments with full automation. OGP® SmartScope 3D multisensor systems are designed to serve manufacturers. These systems combine optical, laser and tactile sensors, letting you measure parts more completely, with lower uncertainty and in less time.

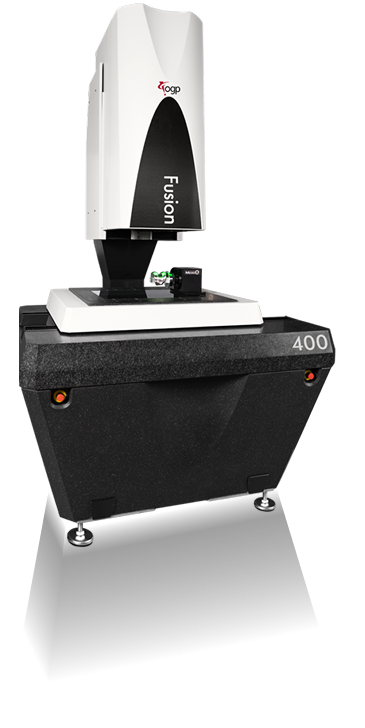

Fusion® high-speed, 3D multisensor measurement systems combine an exceptionally large field-of-view (LFOV)optical system with multisensor flexibility. Telecentric LFOV optics offer dual magnifications and autofocus to image a wide area with high accuracy. Instantly process and identify all features and dimensions within the scene without a pre-programmed measurement routine.

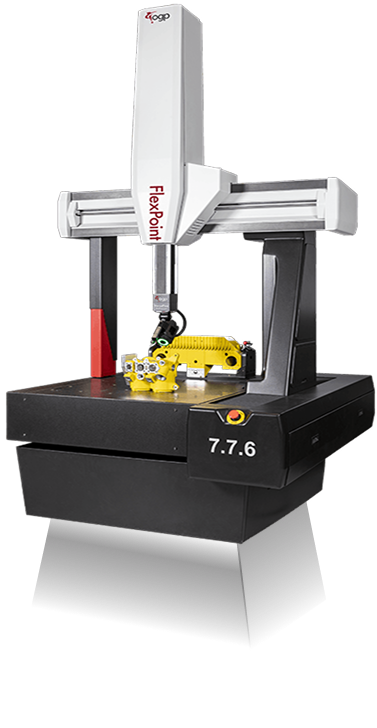

FlexPoint™ large format, multisensor coordinate measuring machines combine sensors and CAD based programming to solve a variety of dimensional measurement problems. FlexPoint systems feature the VersaFlex sensor array with up to three sensors on an articulating head to measure parts with scanning probe, telecentric optics, and TeleStar interferometric laser – without the downtime of exchanging sensors and constantly recalibrating.
POWERED BY ZONE3 SOFTWARE THAT MAKES
ADVANCED METROLOGY SO EASY
Intelligent Routine Optimization
Run routines as efficiently as possible by reducing machine movements and measure features that can be seen at the same time simultaneously.
Offline Programming
Program routines and see results at an offline workstation, eliminating the need to use a measuring machine for programming.
Parallel Processing
Full field image processing allows entire scenes to be measured instantly.
Advanced Edge Detection Algorithms
Class-leading algorithms allow for lightning-fast, highly accurate video measurements.
MORE RESOURCES
E-BOOK
Learn how ZONE3 software works in conjunction with the SmartScope M-Series to provide confidence, control and cost savings.
DOWNLOAD NOW
NEW FEATURES GUIDE
Use this quick reference manual to explore the features of ZONE3 software, including tips and shortcuts to commonly used tools.
DOWNLOAD NOW

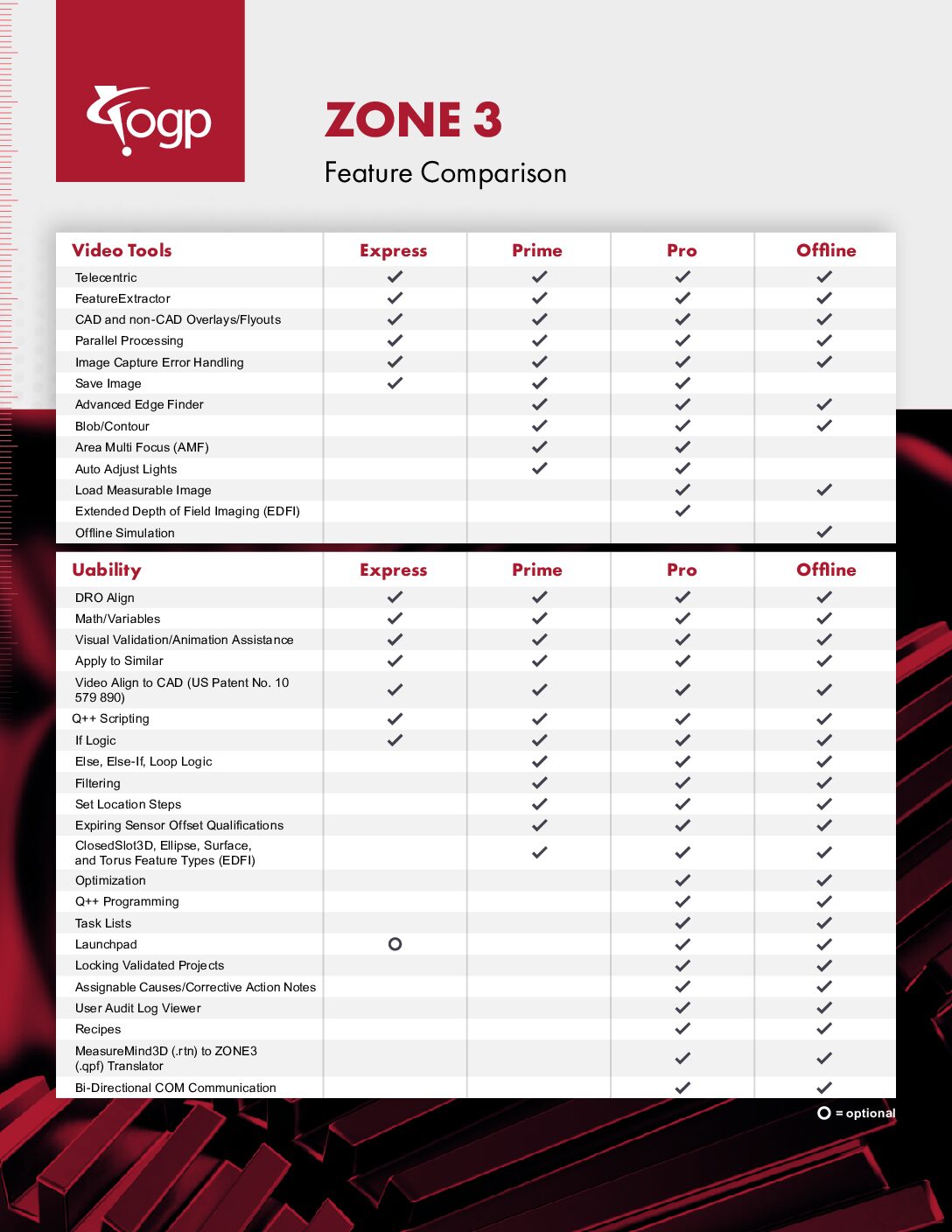

FEATURES COMPARISON
Choose the right level of ZONE3 for your needs (EXPRESS, PRIME, PRO or OFFLINE) with this features comparison guide.
DOWNLOAD NOW
